QUANXU titanium immersion heaters are designed for the demands of corrosive chemical heating, with a vast array of

configurations available such as open tank, screw plug and flange. We offer sizes of Titanium Heater as small as 500 watts

for laboratory environments and as large as 50,000 watts for industrial applications.

Detailed information:

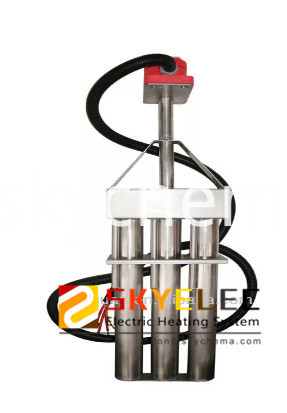

1. The titanium heaters are made of seamless titanium tubes, three elements of diameter 50mm, in vertical shape.

2. Power of the titanium heaters is designed according to the location of installation, liquid chemical propoties and the deposition

of the solid contents in liquid.

3. Hot-zone length of the titanium heaters depends on the power of the titanium heaters, different power, different hot-zone length.

And the cold-zone length is flexible, it should be designed according to customers' equipment requests.

4. For safety design principle, the hot-zone of the titanium heaters should be at least 100mm below the chemical liquid level.

5. With voltage of 110V/P, 220V/P, 380V/P, 220V/3P, 380V/3P, 415V/3P and power range from 0.5kw to 50kw.

6. All titanium heaters are matched with overheat protection switch or heat detector.

7. All titanium heaters reach the international standard, which insure the reliability and service life.
